Content Space

Content

icon layers In Content, the contents / map layers available in the map application are listed. The individual map layers can provide various other actions. These include further information, styles, viewpoints and much more.

Figure 1. Content window

In the basic user interactions the individual interactions that are available in the content window are listed and explained further.

List view

The list view feature allows you to display all active features from a layer in a movable, searchable list window within the VC Map application. It provides quick access to feature attributes and map navigation directly from the feature list.

For layers that are enabled for list view, the feature can be accessed via the located next to the layer name in the Content window.

If enabled for list view, the list may display only features that are visible in the current map view. The behavior depends on the configuration of the individual VC Map app.

Figure 2. List view window example

When a search filter is applied, the list view shows only the matching features. The example below demonstrates this functionality.

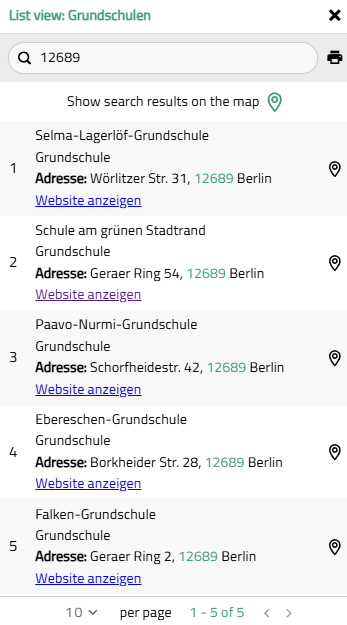

Figure 3. Search results example in list view

User interface elements of the list view window

UI / Setting	Description
	Search results Allows searching for list elements by attribute.
	Show search results on the map The button is only active after entering a search filter. Clicking this button filters the list and zooms the map to the extent of the filtered results.
	Print list Exports the current (filtered or full) list as a PDF document.
	Show position Clicking the map marker icon next to each list entry zooms directly to the individual list element’s location on the map.

UI / Setting

Description

icon searchOrg

Search results
Allows searching for list elements by attribute.

icon map marker green

Show search results on the map
The button is only active after entering a search filter. Clicking this button filters the list and zooms the map to the extent of the filtered results.

icon printer

Print list
Exports the current (filtered or full) list as a PDF document.

icon map marker

Show position
Clicking the map marker icon next to each list entry zooms directly to the individual list element’s location on the map.

Please familiarize yourself with the basic user interactions to learn more about general window behavior, such as moving and docking windows.

My Workspace

icon workspace In My Workspace, objects created by the user in the map are listed and managed. This includes drawn geometry objects like polygons, lines, points or even texts. (More objects will be added in the course of further developments).

The My Workspace window opens when the icon is being activated in the upper left corner of the map application.

Figure 4. "My Workspace" with two geometry objects

Through the workspace, one can interact with the objects individually or as a group. Among other things, renaming, selecting, showing, hiding or zooming to individual objects, and downloads are possible:

Figure 5. Interaction options in "My Workspace": Selected geometry object

Workspace interaction options:

Action	..UI
Select Select the object and edit it.
Download Download content
Visibility Display object yes / no
Other functions - Zoom in: Zooms in on the extent of the object - Rename: Renames the object to "My Workspace" - Edit: Allows geometric or stylistic editing of the object (see also Drawing Tool) - Remove: Deletes the object from "My Workspace"

Action

..UI

Select
Select the object and edit it.

Download
Download content

Visibility
Display object yes / no

Other functions

- Zoom in: Zooms in on the extent of the object
- Rename: Renames the object to "My Workspace"
- Edit: Allows geometric or stylistic editing of the object (see also Drawing Tool)
- Remove: Deletes the object from "My Workspace"

Legend

icon legendOrg Provides a legend for a layer of the VC Map, either via style or service. The legend of the corresponding layer will be displayed once the layer is activated in the application.

The legend window is movable. If it is undocked, moved, and then closed, it will open again at the exact location specified by the user once reactivated. If the window is docked again, it opens at the default position in the upper right corner. More about the basic behavior can be found at user interactions.
