Codelist Module
The Codelist module in VCDB v5 adds support for storing codelists, which are tables of values with corresponding
descriptions or definitions. Many CityGML properties are designed to take values from codelists, as defined in the
CityGML 3.0 Conceptual Model (CM). Codelists may be required, recommended,
or suggested by an authority within an organization or community, or more informally defined and used within an
application domain.

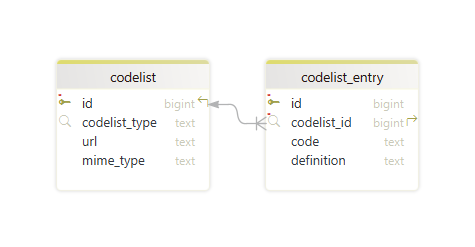

CODELIST table
The CODELIST table is used to register codelists. Each codelist is assigned a URL as a unique identifier, which is
stored in the url column.
In case the url points to an existing external file, the mime_type column should specify the
MIME type of the referenced codelist to ensure it can be processed correctly according to its format. CityGML does not
prescribe specific formats for codelists but suggests using GML, JSON, and CSV-based encodings (see
here).
The codelist_type column specifies the CityGML data type associated with the codelist. It stores the qualified
classname of the data type as defined in the CityGML CM, such as core:RelationTypeValue or`bldg:BuildingClassValue`.
There is no foreign key connecting the CODELIST table with the PROPERTY table
to directly link a codelist with a property that uses values from it. Instead, properties that reference codelists are
typically of type core:Code, which includes a codeSpace attribute stored in the val_codespace column. This codeSpace
typically points to the URL identifying the codelist from which the property value is taken. The corresponding codelist in
the CODELIST table can be identified by matching the codeSpace value with the url column.
Multiple codelists can be registered for the same codelist_type, such as codelists from different
authorities or communities. In these cases, the combination of codelist_type and url should be unique across
all entries in the CODELIST table.
|
CODELIST_ENTRY table
The CODELIST_ENTRY tables stores the values of the registered codelists. Each value is linked to a
codelist through the codelist_id foreign key, which references an entry in the CODELIST table.
The code for each permissible codelist value, along with its definition or description, is stored in the code and
definition columns, respectively. This setup allows for easy lookup of the definition for a code that is stored as
property value in the PROPERTY table, and vice versa.
Besides using the codelist tables to look up or validate property values associated with a codelist during data import
and export, they can also be used to build a web service that provides stored codelists as files or serves as a lookup and
validation service for individual codelist values. Tools for building such services are not included in the
VCDB v5, though.
|
